HYDROMAT
BF 80-2 H

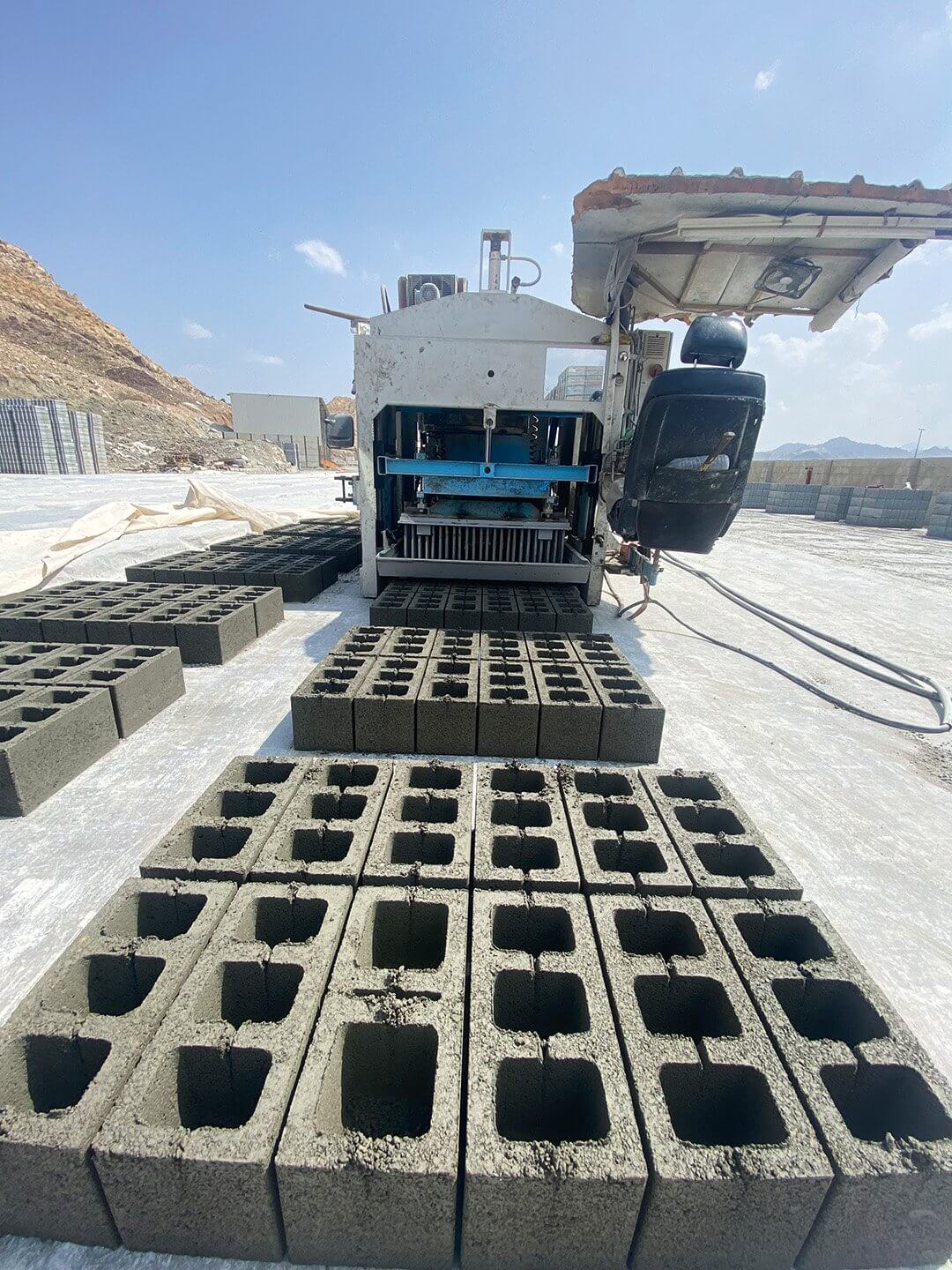

Mobile egg-layer machine including polystyrene insert device, height adjustment for concrete silo, table plate and fillerbox rails.
Concrete block machine
HYDROMAT BF 80-2 H
Mobile egg-layer machine for the production of
- hollow blocks
- solid blocks
- insulated blocks
- hourdi blocks
- curb stones
- chimney blocks
- palisades
Mobile egg-layer machine that offers flexibility.
The HYDROMAT BF 80-2 H includes:
- Mechanical locking of tamper head and filler box for safe maintenance work and mould change
- Steering: steering wheel drive connected to drive axle via gearbox, hydraulic lifting device for steering wheel
- Filler box with central drive via 1 hydraulic cylinder with wiper on both sides for optimum mould filling
- Mould and tamper head guided on 4 columns
- Demoulding via central hydraulic cylinder and guidance by 2 columns
- Two tamper head vibrators and two high efficient mould vibrators
- Easy mould change due to centring device
- Level control for filling box/ filling box rails, filling box table/ concrete silo by winches. All devices are adjusted simultanesously with 2 manual winches when the mould height is changed
- Spring-loaded, adjustable seat for operator
- Adjustable sunshade directly above the operator
- Abrasion-resistant polyurethane wheels to protect the production surface
- Dirt deflector brushes in front of wheels
- Large rear-view mirror for lane control
- Pressure gauge for checking the hydraulic pressure
- Usage of moulds from the existing BF 80 machines possible
- Electric control with the standard backage is executed as a conventional control with only contactors
